Processing an Image with Axiom Process

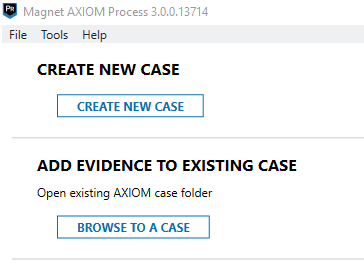

Create a new case


Going to use images from NIST's Computer Forensics Data Sets site:



Personal Computer (PC) – 'EnCase' Image

Download Linkspc.E01pc.E02pc.E03pc.E04 (total 7.28 GB compressed by EnCase) - hash
Imaging S/WEnCase Imager 7.10.00.103
Image FormatE01 (Expert Witness Compression Format) converted from VMDK
cfreds_2015_data_leakage_pc.E0172432916933F5A309A8C456B40C9601D1F8D2A4F
cfreds_2015_data_leakage_pc.E020CAF4261ED8432A8B3BAA019B1B28FDF96F79130
cfreds_2015_data_leakage_pc.E03BE836C891736C4C0C2253C6803399BF0F2A599BA
cfreds_2015_data_leakage_pc.E049159BFFD56097495F73FBBF967B75EB288B1E3DE


Using Powershell to retrieve the image files from the site to desktop:
run these two commands, 2nd one will need to be for each .E01 file
  • $client = new-object System.Net.WebClient
  •  $client.DownloadFile("https://www.cfreds.nist.gov/data_leakage_case/images/pc/cfreds_2015_data_leakage_pc.E01", C:\Users\bryan\Desktop\Data_Leakage_pc.E01")
*needs to be done for E01 - E04





Open Magnet's Axiom Process

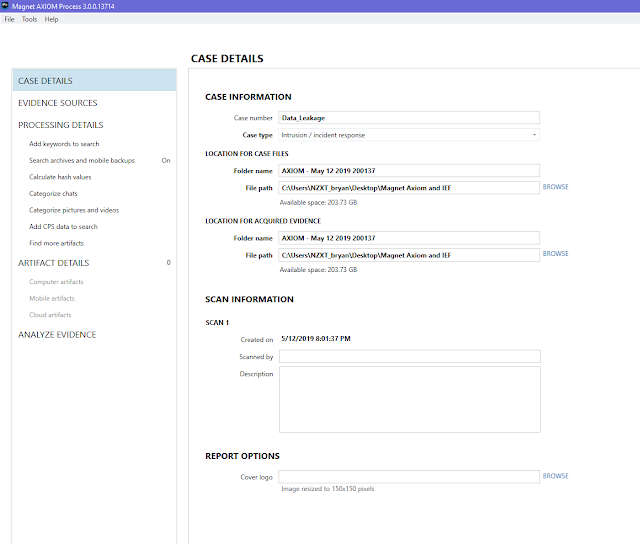

Filling in case details




































Selecting Evidence source.  In this case it is a Windows Computer image

































Load the evidence image file

Select the image option

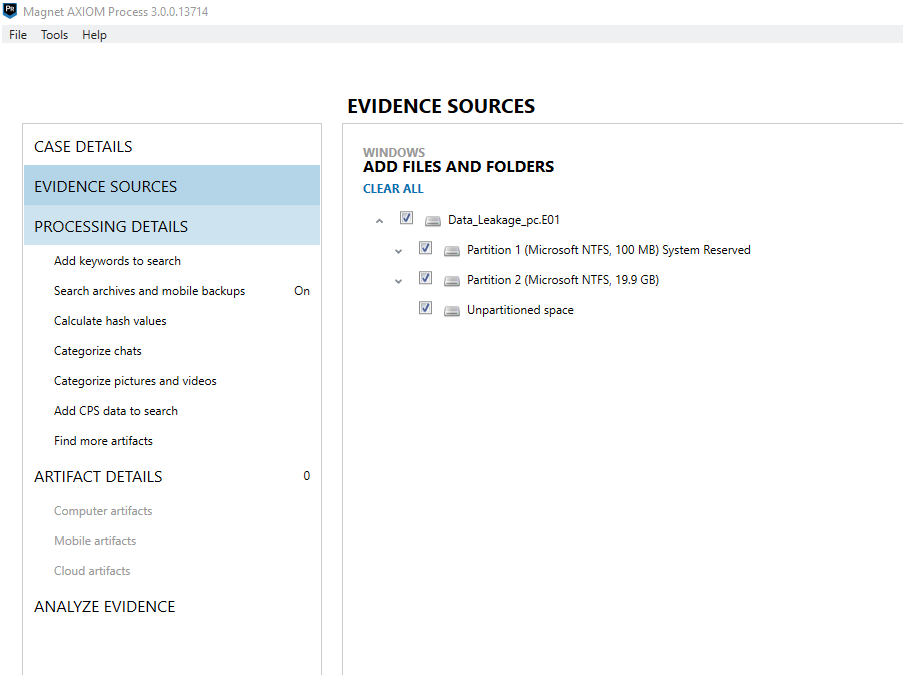

Evidence Sources Added

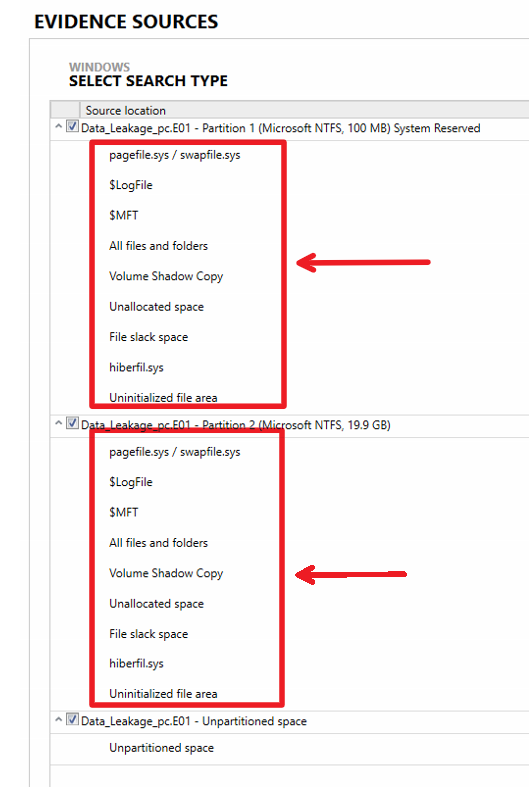

Sources on the disk image from where artifacts are processed from.

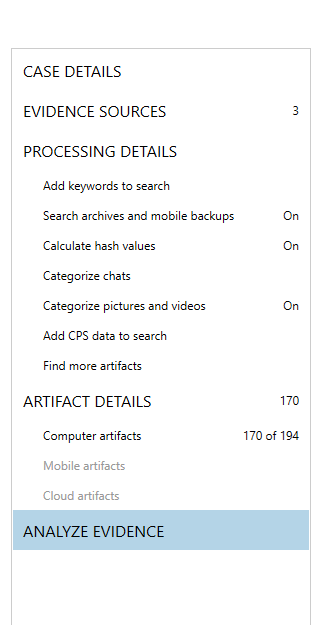

Options for further processing.  Can choose to find keywords from artifact type.






































Select Analyze.  Magnet Examine will open and a percentage circle with time elapsed bar will count the process time

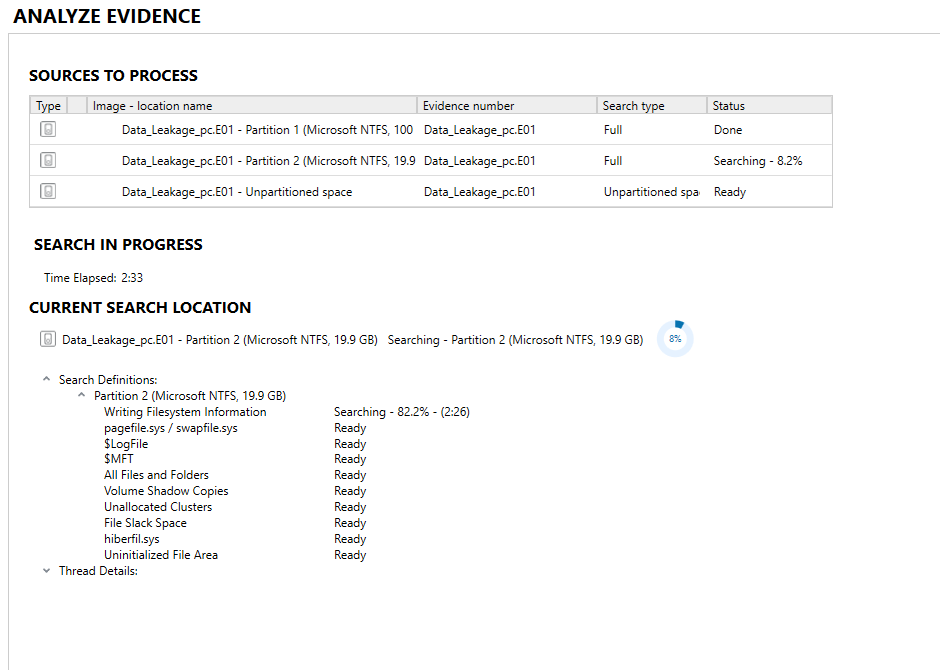

Currently processing progress percentage shown












































Next post will be showing the examination piece of this evidence image, once done processing.



Reference:
NIST.(2019). Data Leakage Case. Retrieved from https://www.cfreds.nist.gov/data_leakage_case/data-leakage-case.html
